HC3 4X4 Automatic Welding Manipulator For Steel Tank

FOB Reference Price:Get Latest Price
US $5,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HC3
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI or OEM
Arc Current:
Standard
Pulse Frequency:
Standard
Pilot Arc Current:
standard
Rated Duty Cycle:
standard
Motor Type:
AC Motor
Dimensions:
According to customer
Usage:
Welding
Voltage:
220V/380V or customized
Power(W):
According to powersource
Certification:
ISO and CE
Warranty:
ONE YEAR
Welding Mode:
Mig/Tig/Arc Welding
Seam Welding:
Longitudinal/Circular Seam Welding
Color:
Blue Or According to customer
Machine Name:
HC3 4X4 Automatic Welding Manipulator For Steel Tank
Up and down strock of cross arm:
2-8m
Optional streching stroke of cross arm:
2-8m
Up and down speed of cross arm:
850mm/1150mm
Rotating speed of the pillar:
0.2r/min
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month HC3 4X4 Automatic Welding Manipulator For Steel Tank
Packaging & Delivery
Packaging Details
Standard Packing In Wooden Case-HC3 4X4 Electrical Welding manipulator/automatic welding machine
Port
QINGDAO OR OTHER
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(day) 20 To be negotiated



HC3 4X4 Electrical Welding manipulator

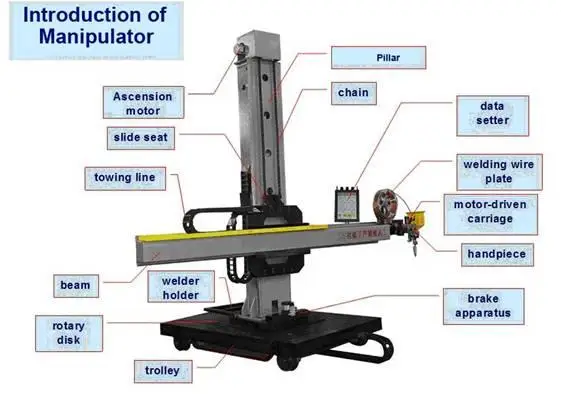

Product Description

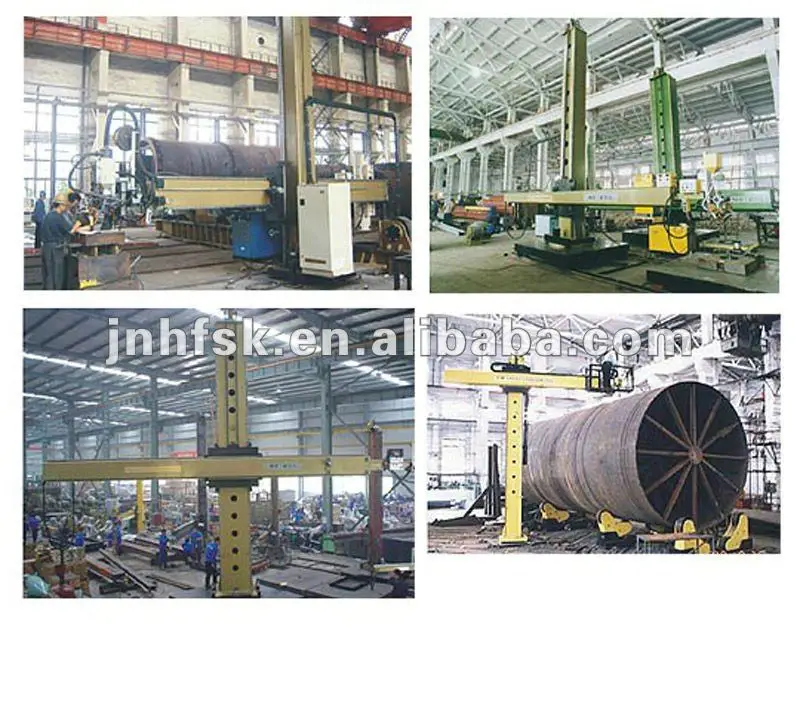

 Automatic welding manipulator can weld any kind of welding seam with any kind of way, applys widely to wind power equipment,

pressure vessel, petrifaction, pipe, steel structure, boiler, ship-building, overlaying industries.It can be equipped with motor-driven carriage,

inside extension arm, manned device, safeguard ladder, tracker, monitor, oscillator, fl ux feeding and recovery system and so on.

Its control system adopts digitization-controlling way, can be linkaged with other equipment, is characterized of easy operation and precision control.



Features



1. Control System

Manipulator control system using digital control, easy operation, precise control, and other equipment to facilitate linkage control.

2. Customer-Oriented

According to customer requirements, it can be installed electrical extension unit inside telescopic arm operator's seat and safeguard ladders,

but also supporting a variety of tracking and monitoring, arc oscillation, transmission devices of flux recovery.

3. Type

Welding manipulator is divided into small, medium, heavy three types;

Four structural forms are fixed, fixed rotating, fixed mobile and mobile rotating.







Technical parameters



Model No.

HC-2*2

HC-3*3

HC-4*4

HC-5*5

HC-6*6

HC-7*7

HC-8*8

Up/down stroke of boom(m)

2

3

4

5

6

7

8

Optional up/down stroke of boom(m)

2-4

2.5-5

3-7

3-8

4-8

4-8

4-8

Rotating angle of the column(°)

±180°

The up/down speed of boom(mm/min)

850

1150

Expansion speed of boom(mm/min)

140-1400

Rotating speed of column(r/min)

0.2

The total load of boom

100

200

300

400

500

500

500

Distance C to C of the track(optional)

2000/2500



































Packaging & Shipping





Company Information



Since established, Jinan Huafei CnC Machine Co.,Ltd. has focused on introducing and cultivating high-tech talents

and takes it as development strategy. at present, many professionals have been brought together who specialize

in researching and developing of uncoiling and leveling machines, CnC welding and cutting equipments. technical

strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many

countries in the world, including Australia, Indonesia, India, Burma, Iran, Spain, Brasil, Peru, Russia, Azerbaijan,

KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.







FAQ



Q1: Can your machine or other products be customized?

A1: Yes,we are an professional manufacturer who specializes in welding equipment about 15 years old,

we have a strong design team ,so any conventional products can be customized.



Q2: What about the transportion?

A2: Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,if it is allowed ,

we also can take train ,its according to real condition.



Q3: What about the after-sale service?

A3: We provide 12 months quality warranty after dispatch,and some free easy abrasion spares of machine,

we also provide long time free technical advisory services and technical clonsluting services, we will dispatch

our engineer to go aboard to provide technical service if its necessary.



Q4: When we receive your machine ,is there any other Accessories we will get?

A4: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen.
