Gantry Type CNC Plasma and Flame Oxyfuel Cutting Machine

FOB Reference Price:Get Latest Price
US $5,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QG series
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Voltage:
380v / 220v / Others
Rated Power:
1200w
Dimension(L*W*H):
depend on model
Weight:
1300KG
Certification:
ISO & CE
Warranty:
1 Year, 12 months
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Control:
CNC
Usage:
Metal cutting
Color:
According to customer
Motor:
Servo motor
Software:
Australia Fastcam
Plasma cutting thickness:
Depend on plasma power source
Flame / Oxyfuel cutting thickness:
6-200mm
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Well packed in wooden case.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(day) 30 To be negotiated



HUAFEI CNC Plasma and Flame/Gas Cutting Machine



Product Description

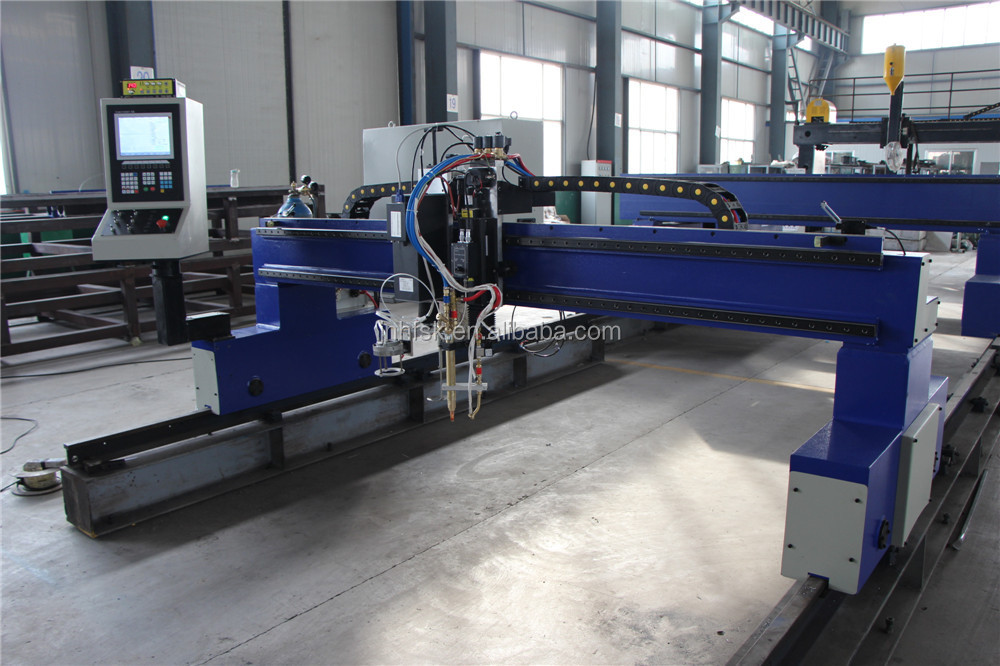

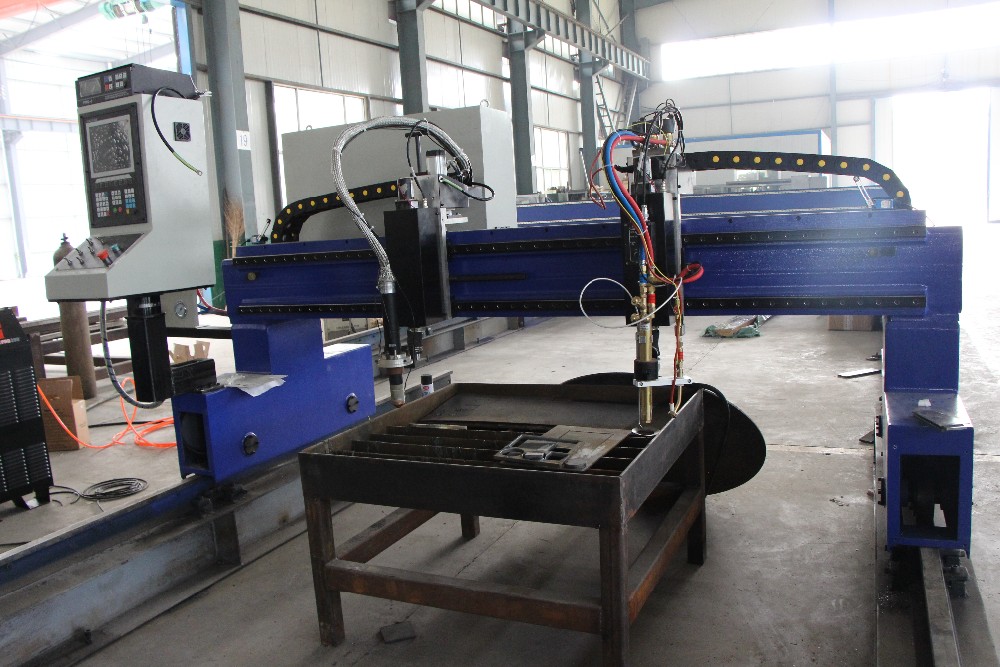

  The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure, its horizontal track width have many specifications:2m,3m,4m,5m,6m,7m,etc.2m,3m,adopt single drive ,3m,4m,5m,6m,7m adopt dual drive and lineal guide. Torch quantity and type are optional according to users’ requirement,





Technical parameter



techncial parameters of plasma cnc cutting machine

Specifications /model

QGⅡ4000×8000

QGⅡ6000×10000

Track gauge (mm)

4000

(widen available )

6000

(widen available )

Track length (mm)

8000

(lengthen available )

10000

(lengthen available)

Effective cutting width

(mm)

3200

(widen available)

5200

(widen available )

Effective cutting length (mm)

5500

(lengthen available )

7500

(lengthen available)

Flame cutting torch No.s(group)

1

1

Cutting thickness(mm)

6-200

6-200

Cutting speed (mm/min)

0-6000

0-6000

Control system

MicroEdgepro or optional

MicroEdgepro or optional

Driving system

Servo drive

Servo drive

capacitance automatic height adjusting

control system

Optional

Optional

Electric height adjusting system

1

1

automatic ignition

1

1

Track

Horizontal: linear guide

Longitudinal : speciallized

steel rail

Horizontal :linear guide

Longitudinal: speciallized

steel rail

Upgrade of control system

Available

Available

Dricving mode

Double

Double

Gas medium

Oxygen /ethyne [propane ]

Oxygen /ethyne [propane ]

Plasma power

Customized

Customized

arc voltageheight-regulating device

Optional

Optional

Plasma dis-collision device



Matching with arcpressure



Matching with arc pressure



Note :

l Above is standard configuration of our products

l Track guage can be customized according to your require

l Track length can be customized according to your require





Features



1. Frame

Gantry box beam with good loading capacity, high double=-side drive, for the compact structure, sufficient to eliminate the welding stress, its performance is stable and reliable



2. Guide rails

Horizontal guide rails using domestic or imported guide, is of high precision and good guidance.Longitudinal guide rails made from special metals, with smooth grinding surface ,has very high mechanical precision and abrasion resistance.



3. Rack and gear

Horizontal and longitudinal transmission adopt German NEUGART maintenance-free planetary gear reducer,high accuracy, large torque and low back lash.



4. Servo system

Our cnc cutting machine is of Panasonic servo motor and driver which has position detection function and is characterized of high working precision and short acceleration time



5.USA Hypertherm plasma source





Samples







After-Sales Service

l Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .

l Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine

l one year warranty, life-long maintenance services through email or telphone .Please feel free to use.

l Supply all kinds of accessories and replacement.

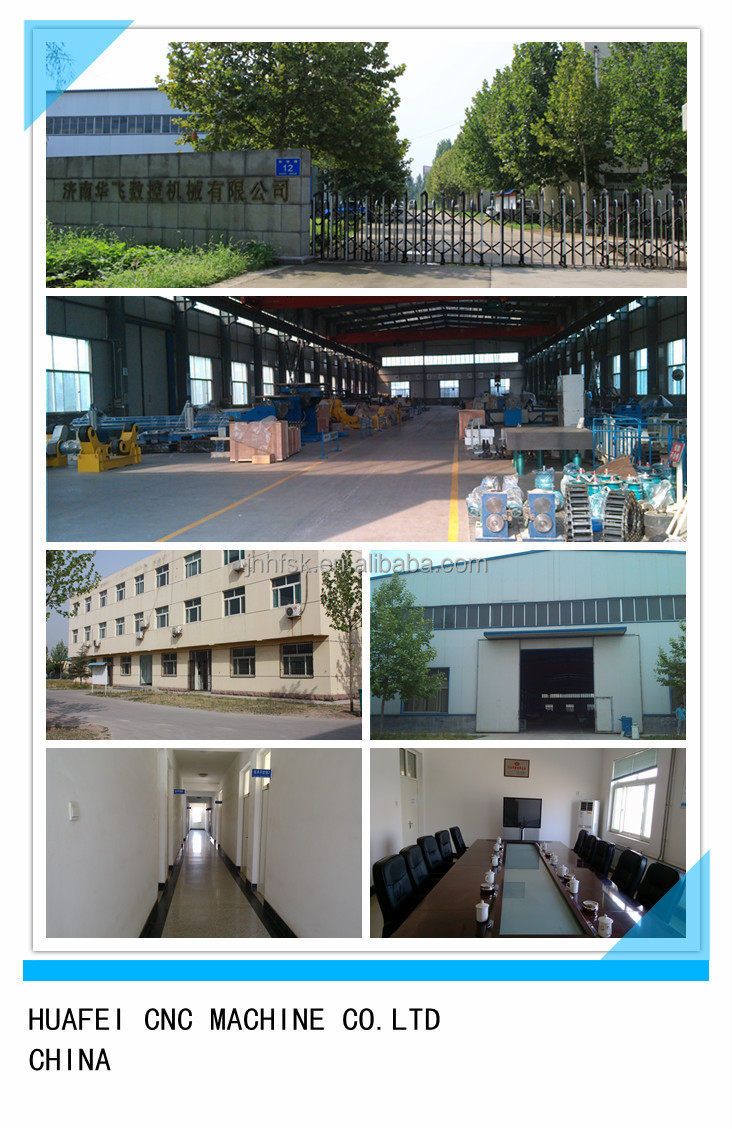

Factory information
