Solar Water Heater Circular Seam Semi Automatic Welding Machine

FOB Reference Price:Get Latest Price
US $8,000-16,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Circular Seam Welding Machine
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Voltage:
380V
Current:
0-1000A
Rated Capacity:
2.0-3.0Kw
Rated Duty Cycle:
50-100%
Dimensions:
50-800mm
Weight:
1-2t
Usage:
Circular Seam Welding Machine
Certification:
CE ISO
Name:
Solar Water Heater Circular Seam Semi Automatic Welding Machine
Welding mode:
TIG MIG MAG SAW PAW
Welding material:
carbon steel; stainless steel
Welding thickness:
3-8mm
Welding diameter:
50-800mm
Welding length:
100-2000mm
Welding speed:
0.2-2.2m/min
Control mode:
PLC/CNC
Drive Mode:
AC motor/servo motor
Interface:
touch screen HMI
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case or plastic film cover; Solar Water Heater Circular Seam Semi Automatic Welding Machine
Port
Qingdao; Solar Water Heater Circular Seam Semi Automatic Welding Machine

Solar Water Heater Circular Seam Semi Automatic Welding Machine



Product Overviews

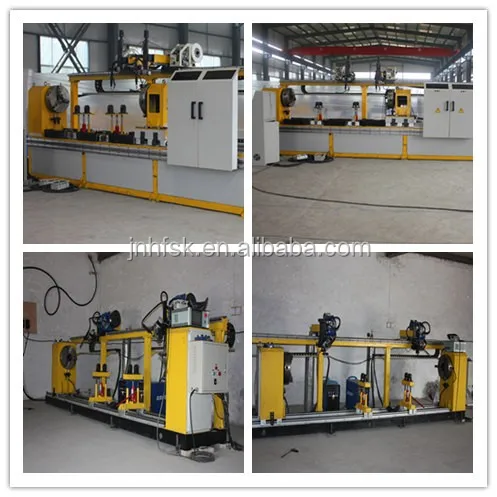

Automatic circular circumferential girth seam welding machine

Automatic circular circumferential girth seam welding machine

Automatic circular circumferential girth seam welding machine

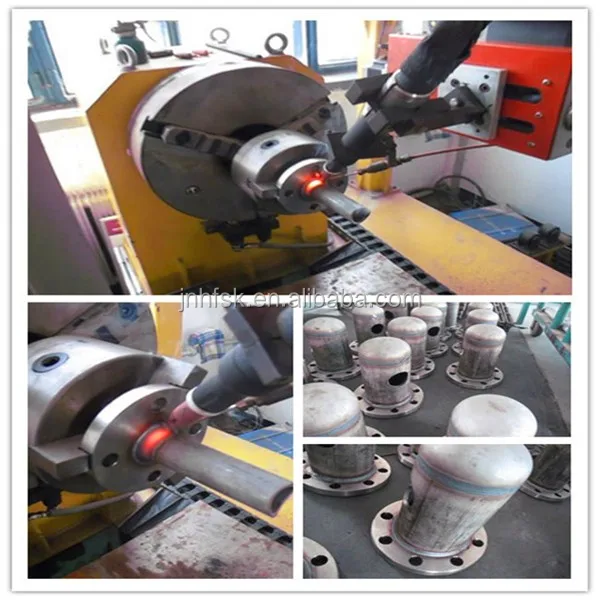

Complete cylinder girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. SAW/MIG/MAG welding process; complete in one time welding.

Mainly use for tank, cylinder, pipe and flange welding

 Feature Automatic circular circumferential girth seam welding machine

   ♦The welding torch is fixed; the work piece rotating, welding position is horizontal

   ♦The work piece rotation is driven by clamping, roller bearing bracket

   ♦The torch is adjustable along the longitudinal beam, adaptable to various welding

   ♦Machine is PLC control, the work piece rotation adopts AC servo motor speed control, stepless adjustable, improve equipment reliability.

   ♦The form and parameters of welding can be preset, storing and transferring. Through touch screen human-machine interface can easily change the parameter and state transition.

   ♦The torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.

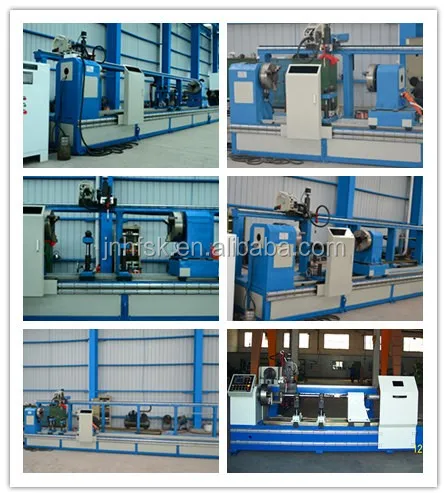

Automatic circular circumferential girth seam welding machine

Automatic circular circumferential girth seam welding machine

  Main Parameter Automatic circular circumferential girth seam welding machine

 Item Parameter
welding material carbon steel, stainless steel, aluminum alloyed
welding thickness 2-6mm
welding diameter 100-400mm; 400-1200mm
welding length 300-6000mm
work piece weight maximum 6000kg

Automatic circular circumferential girth seam welding machine

Automatic circular circumferential girth seam welding machine

 Video link Automatic circular circumferential girth seam welding machine

https://www.facebook.com/AKZ250/videos/1524127854494349/

https://www.facebook.com/AKZ250/videos/1524152487825219/

https://www.facebook.com/AKZ250/videos/1529550897285378/

https://www.facebook.com/AKZ250/videos/1579766485597152/

https://www.facebook.com/AKZ250/videos/1954024894837974/

https://www.facebook.com/AKZ250/videos/1954027318171065/

https://www.facebook.com/AKZ250/videos/1954027648171032/

https://www.facebook.com/AKZ250/videos/1954029488170848/

https://www.facebook.com/AKZ250/videos/1954032238170573/

https://www.facebook.com/AKZ250/videos/1954032681503862/

Automatic circular circumferential girth seam welding machine
