Q235b Q345b Carbon Steel Plate Wear Resistant Steel Plate Manufacturing Machine

FOB Reference Price:Get Latest Price
US $29,000-47,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Model Number:
Jinan HuaFei overlaying wear plate hardfacing welding machine
Voltage:
380V
Current:
10-1000A
Rated Capacity:
16KVA
Rated Duty Cycle:
50-100%
Dimensions:
1500X3000mm
Weight:
2-4T
Usage:
overlay welding machine
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Jinan HuaFei overlaying wear plate hardfacing welding machine
Welding mode:
open arc overlay welding
Welding power:
SAW MAG
Control system:
CNC
Interface:
touch screen HMI
Cooling mode:
water
Work table size:
1500x3000mm or as user requirement
Welding torch amount:
2-4
Oscillator:
linear swing
Clamping tool:
press pad
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
plastic film cover, or plywood case; Jinan HuaFei overlaying wear plate hardfacing welding machine
Port
Qingdao; Jinan HuaFei overlaying wear plate hardfacing welding machine
Lead Time :
Shipped in 30 days after payment

Jinan HuaFei overlaying wear plate hardfacing welding machine

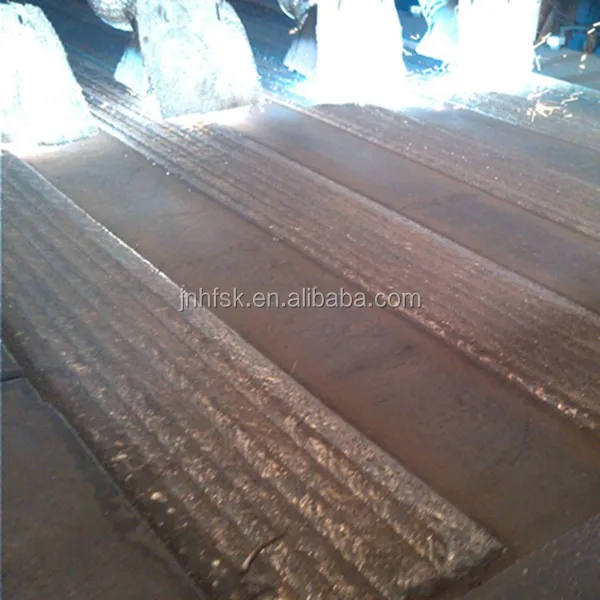

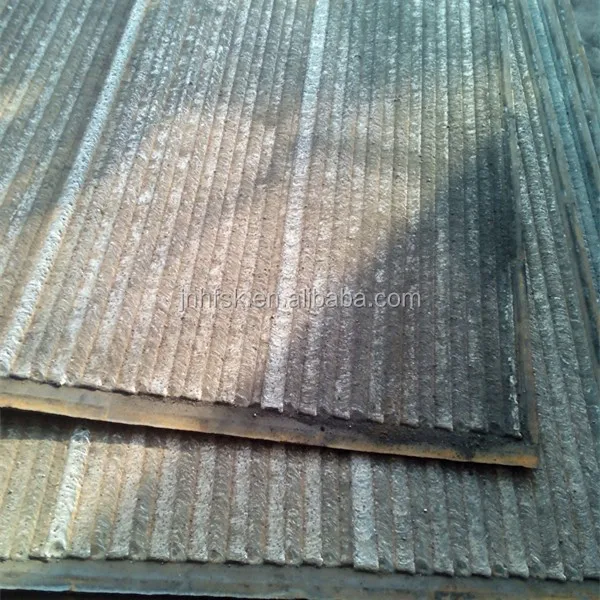

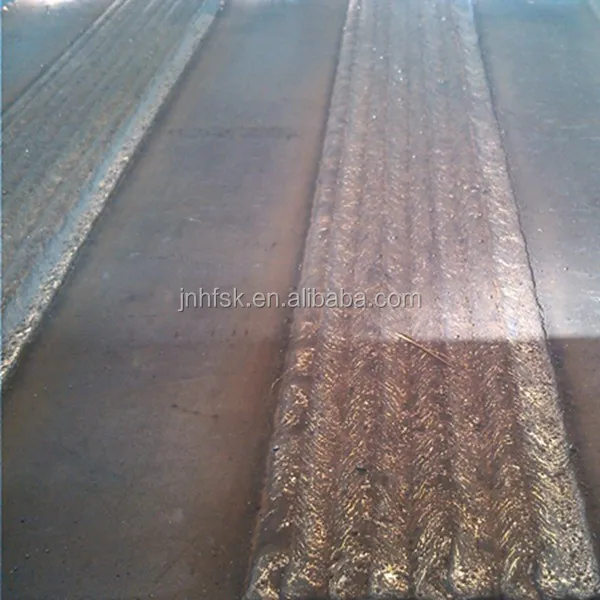

Wear plate

 Application wear plate hard facing overlay welding machine

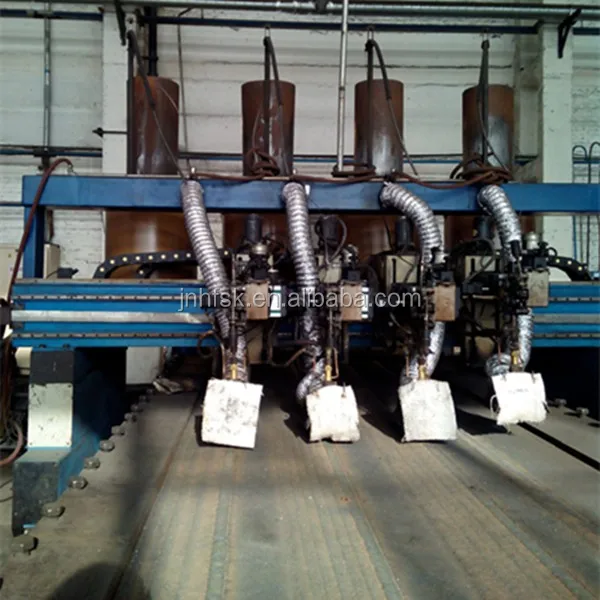

    Wear resistant steel plate is using special high hardness open arc wire to overlay uniformly resistant alloy cladding layer processing, to protect the surface from ordinary carbon steel plate. Its working principle is the work piece is placed on the work piece carrier; welding arm with open arc welding torches on gantry frame move horizontally, up and down; so that the welding nozzle head aligning on the welding seam, and then by the gantry shelf moving on the rail as straight line,  weld automatically. This machine can weld four welding seam at the same time.


Feature         wear plate hard facing overlay welding machine

A high degree of automation, one button start and stop, simple operation, greatly simplifies the operation process

Barreled welding wire located above the beam, to ensure smooth wire feeding

Water cooling effect is good; ensure welding 4+2 wear-resistant plate, plate deformation after welding is very small



PLC is used to control the operation of the machine, AC variable frequency speed regulation, improve equipment reliability



IPC control the stability of the platform, in order to ensure the long time stable operation of welding system



Machine parameters can be set to make any combination of the welding torch welding



The integration of multi welding torch swing, driven by AC servo motor, stable swinging, weld forming beautiful



Breakpoint welding function



Water-cooled torch improve consumable life

Parameters                     hard facing overlay welding machine

Item

Parameters

Effective transverse welding stroke:

1500mm; Can be customized

Effective longitudinal welding stroke:

3000mm; Can be customized

Welding speed:

150 -1500mm /min

Gantry gauge:

3000mm

Cross slide trim trip (Electric)

60mm

Welding torch up and down stroke (Electric)

260mm

Swing speed:

0-2400mm/min

 wear plate 3.jpg






 Video Link   wear plate hard facing overlay welding machine

https://www.facebook.com/video.php?v=1534631233444011&set=vb.100006914478186&type=3&theater


Our Services

 ISO9001:2008 & CE certification


 After-sale Service



 Warranty one year



 Engineers available to serve machine overseas



♥ Strict factory inspection



♥ Complete equipment manual



♥ Online instruction



♥ Provide all components, spare parts and consumptive material
