Automatic Flat Butt Welding Equipment Metal MIG Welding Machine/2017 tank welding

FOB Reference Price:Get Latest Price
US $25,000-38,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Huafei
Model Number:
Steel Plate Butt Joint Long Seam Welding Machine , Automatic Flat
Input Voltage:
380V
Current:
10-1000A
Power:
5.5Kw
Dimensions:
3-9m
Usage:
Steel Butt Plate Welding Machine
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Steel Plate Butt Joint Long Seam Welding Machine , Automatic Flat
Welding mode:
TIG MIG MAG SAW PAW P+T
Welding material:
carbon steel; stainless steel; aluminum and alloyed
Welding thickness:
1-20mm
Welding length:
3000-9500mm
Control mode:
PLC + touch screen HMI
Clamping tool:
Pneumatic key type press pad
Cooling mode:
Recycle water
Seam tracker:
auto/manual
Power Supply:
Lincoln Miller Kemppi Fronius OTC ESAB
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
plastic film cover, or plywood case; Automatic flat butt welding machinery factory/Steel Plate Butt Joint Long Seam Welding Machine , Automatic Flat
Port
Qingdao port; Automatic flat butt welding machinery factory/Steel Plate Butt Joint Long Seam Welding Machine , Automatic Flat
Lead Time :
Shipped in 30 days after payment

Automatic flat butt welding machinery factory/Steel Plate Butt Joint Long Seam Welding Machine , Automatic Flat



Butt welding

 Application    Longitudinal Seam Butt Plate Welding Machine


    Mainly used for flat stitching longitudinal seam automatic welding, the welding process can be TIG / MIG / MAG / PAW / SAW and other methods for welding carbon steel, stainless steel, aluminum and aluminum alloys, titanium and other materials, widely used the aerospace, automotive parts, motorcycles, home appliances, pressure vessels and food machinery industry. Pneumatic compression device key structure to ensure uniformity of the work piece clamping, mandrel optional water-cooled and back seam gas protection, reduce welding deformation; control system uses PLC + touch interface humane and effective to ensure the welding quality, simple and reliable operation

 Parameters  Longitudinal Seam Butt Plate Welding Machine

Model

PB-3000

PB-4500

PB-6000

PB-9000

Work piece length(mm)

≤3900

≤4500

≤6000

≤9000

Work piece thickness(mm)

3.0-8.0

Welding head walking speed(mm/M)

0-4000 (or according to customer demand)

Welding torch lift stroke(mm)

100

250

Welding torch fine turning stroke (mm)

Y=100,Z=100

Controller power

Single-phase AC220v 50Hz

    Standard configuration: Support mandrel (without water cooling), copper solder pads (pads shaped groove dimensions according to the work piece thickness, material, welding technology decision), copper key pressure means, 100mm gun pneumatic lift mechanism (carrying 20kg), 60mm stroke two-dimensional manual adjustment mechanism, common arc welding controller (can be adapted to TIG / MAG / PAW)

    Option: Water-cooled spindle support with back air protection pads, stainless steel liner, pneumatic / manual for the device, TIG wire feeder, ALC arc length tracker, pneumatic hook, electric cross skateboard, seam tracking devices, auxiliary loading and unloading car, submerged arc welding head and controller

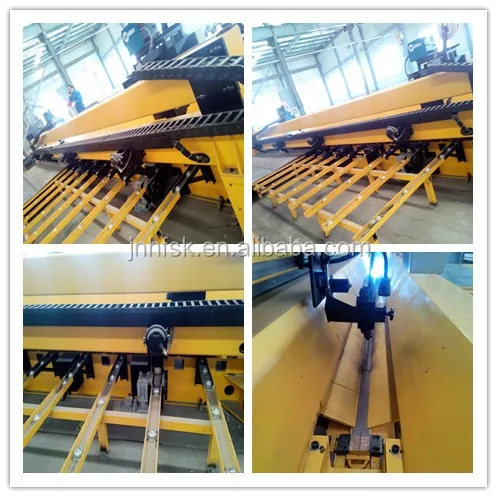

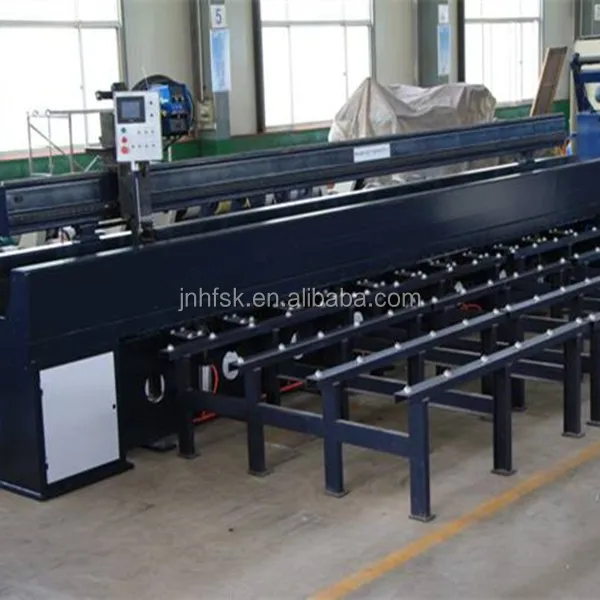

 Pictures          Longitudinal Seam Butt Plate Welding Machine

 .jpg



Our Services

 ISO9001:2008 & CE certification


 After-sale Service



 Warranty one year



 Engineers available to serve machine overseas



♥ Strict factory inspection



♥ Complete equipment manual



♥ Online instruction



♥ Provide all components, spare parts and consumptive material



Packaging & Shipping

 Plywood case or plastic film cover
