Turntable for welding horizonal loading capacity 50KG to 1000KG

FOB Reference Price:Get Latest Price
US $1,900-25,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Welding Positioner
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Model Number:
0.5-30t Rotary Welding Table
Usage:
0.5-30t Rotary Welding Table
Dimensions:
350-2500mm
Weight:
1-20T, 0.3-12T
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
0.5-30t Rotary Welding Table
Loading capacity:
1-20t
Flipping angle:
0--120/-30--90
Flipping speed:
0.37/0.2r/min
Flipping motor:
0.75-11Kw
Rotation speed:
0.1-1r/min; 0.02-0.2r/min
Rotation motor:
0.75-5.5Kw
Work table diameter:
350-2500mm
Welding current:
1000A
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case; 0.5-30t Rotary Welding Table
Port
Qingdao, 0.5-30t Rotary Welding Table
Lead Time :
Shipped in 30 days after payment

0.5-30t Rotary Welding Table



Positioner

 Application               welding positioner welding turning roll

 Seat-type positioner is by working table turning or tilting, let the welding seam at level or boat type position’s welding device. Table rotation with frequency variable speed,  table tilting driven by sector gear or hydraulic cylinder, table rotating angle 0 ° - 120 °.It can achieved linkage control with welding manipulator or welding machine. Control system have 3 options: Button digital control, switch digital control and switching relays control. This machine can widely used in various parts of the shaft, disk, cylinder etc.

 Feature                      welding positioner welding turning roll

1. With professional anti-electromagnet function.

2. Have self-locking function.

3. Giving you the competitive price.

4. Tilting from 0 to 120°, rotating 360°.

5. Provide you the excellent service.

6. Supply you the reliable products.

 Parameters                welding positioner welding turning roll

Model No.

BW2-6

BW2-12

BW2-20

BW2-40

BW2-50

Basic loading(kg)

600

1200

2000

4000

5000

Rotating speed r/min

0.05-0.5

0.03-0.3

0.03-0.3

0.03-0.3

0.02-0.2

Turning speed r/min

0.75

0.37

0.37

0.37

0.25

Turning angle (° )

0-120

0-120

0-120

0-120

0-120

Work table diameter(mm)

800

1100

1100

1400

1600

Height of work table(mm)

1000

1250

1250

1600

1800

Allow workpieceoff-center(mm)

Eccentricity

150

200

200

200

200

Centroidal distance

200

250

300

300

300

Rotating motor power(kW)

0.37

1.5

1.5

2.2

2.2

Turning motor power(kW)

0.75

0.75

1.1

3

3

 Pictures                     welding positioner welding turning roll

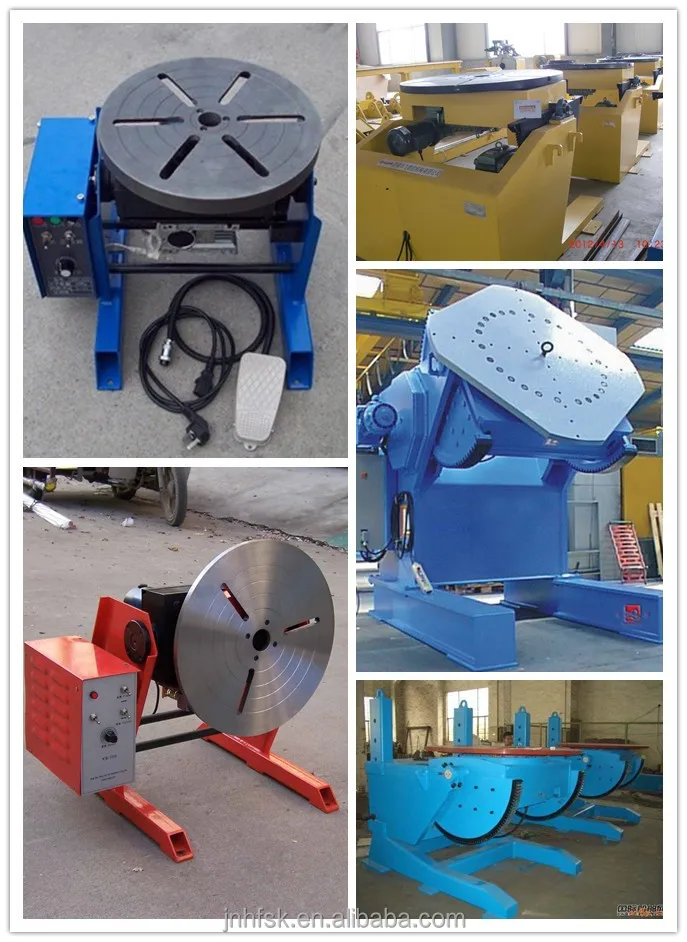

kinds of positioner

 Video Link                welding positioner welding turning roll

https://www.facebook.com/video.php?v=1527359967504471&set=vb.100006914478186&type=3&theater

Our Services

 ISO9001:2008 & CE certification


 After-sale Service



 Warranty one year



 Engineers available to serve machine overseas



♥ Strict factory inspection



♥ Complete equipment manual



♥ Online instruction



♥ Provide all components, spare parts and consumptive material
