HF Series Automatic TIG Circular Seam Welding Machine & Circumferential Seam Welding Machine

FOB Reference Price:Get Latest Price
US $8,000-16,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAFEI
Model Number:
Butt Flange/Pipe Circular Seam Welding Machine Jinan
Voltage:
380V
Current:
0-1000A
Rated Capacity:
2.0-3.0Kw
Rated Duty Cycle:
50-100%
Dimensions:
50-800mm
Weight:
1-2t
Usage:
Butt Flange/Pipe Circular Seam Welding Machine Jinan
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Butt Flange/Pipe Circular Seam Welding Machine Jinan
Welding mode:
TIG MIG MAG SAW PAW
Welding material:
carbon steel; stainless steel
Welding thickness:
3-8mm
Welding diameter:
50-800mm
Welding length:
100-2000mm
Welding speed:
0.2-2.2m/min
Control mode:
PLC/CNC
Drive Mode:
AC motor/servo motor
Interface:
touch screen HMI
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case or plastic film cover; Butt Flange/Pipe Circular Seam Welding Machine Jinan
Port
Qingdao; Butt Flange/Pipe Circular Seam Welding Machine Jinan
Lead Time :
Shipped in 30 days after payment

Butt Flange/Pipe Circular Seam Welding Machine Jinan



Circular Weld

 Application                     Tank Circular Seam Welding Machine

Complete cylinder girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. SAW/MIG/MAG welding process; complete in one time welding.

Mainly use for tank, cylinder, pipe and flange welding

 Feature                           Tank Circular Seam Welding Machine

  ♦The welding torch is fixed; the work piece rotating, welding position is horizontal

   ♦The work piece rotation is driven by clamping, roller bearing bracket

   ♦The torch is adjustable along the longitudinal beam, adaptable to various welding

   ♦Machine is PLC control, the work piece rotation adopts AC servo motor speed control, stepless adjustable, improve equipment reliability.

   ♦The form and parameters of welding can be preset, storing and transferring. Through touch screen human-machine interface can easily change the parameter and state transition.

   ♦The torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.

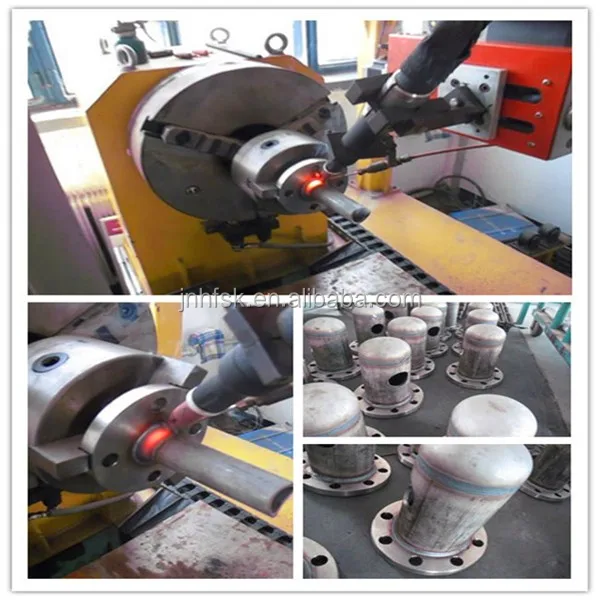

 Pictures                          Tank Circular Seam Welding Machine

 .jpg

 .jpg

 .jpg

 Welding Effect               Tank Circular Seam Welding Machine

.jpg

 Video Link                      Tank Circular Seam Welding Machine



https://www.facebook.com/video.php?v=1524152487825219&set=vb.100006914478186&type=3&theater

Packaging & Shipping

 Plywood case or plastic film cover




Our Services

 ISO9001:2008 & CE certification


 After-sale Service



 Warranty one year



 Engineers available to serve machine overseas



♥ Strict factory inspection



♥ Complete equipment manual



♥ Online instruction



♥ Provide all components, spare parts and consumptive material
